Brother Td-4420tn Desktop Direct Thermal/Thermal Transfer Printer - Monochrome - Label/Receipt Print - Fast Ethernet - USB - USB Host - Serial - With Cutter

General Information

Manufacturer: Brother Industries, Ltd
Manufacturer Part Number: TD4420TN
Manufacturer Website Address: http://www.brother.ca
Brand Name: Brother
Product Model: Td-4420tn
Product Name: TD-4420TN Printer
Marketing Information:

With 203dpi and print speeds up to 6ips, 4" desktop network thermal printers affordably print barcode labels, and tags for SMB supply chain operations. Ideal for inventory, shipping, barcode, and shelf labeling, these precision-built barcode label printers deliver the right levels of performance, quality, and integration at an exceptional value. Experience fast spindle-less media loading, Windows compatibility, ZPL, EPL and DPL emulations and comes with intuitive design software. Now, you can easily and affordably produce the labels you need, with the reliability and support that only Brother delivers. Because powerful desktop printing doesn't always come at a price.

Main Features

• New Industry Pricing for a Desktop Network Printer with a 2 Year Limited Premier Warranty (Includes Print Head) Combines Best Performance with Lowest Costs and Best Limited Premier Warranty. Choose from limited warranty extension options up to a maximum of 5 years coverage.
• Wide Range of Compatible Software Solutions Seamless integration with backwards compatibility with virtually any competitive desktop printer
• Complete Thermal Printing Solution - Includes Design Software Comes with virtually everything needed to design and print high quality media right out of the box
• Prints up to 6ips? on Thermal Transfer & Direct Thermal Labels, Tags, Receipts & Wristbands Versatile design delivers higher performance with media diversity that helps improve efficiency
• Prints Small Labels & Comes with Adjustable Media Sensor Versatile media compatibility with virtually any direct thermal and thermal transfer media

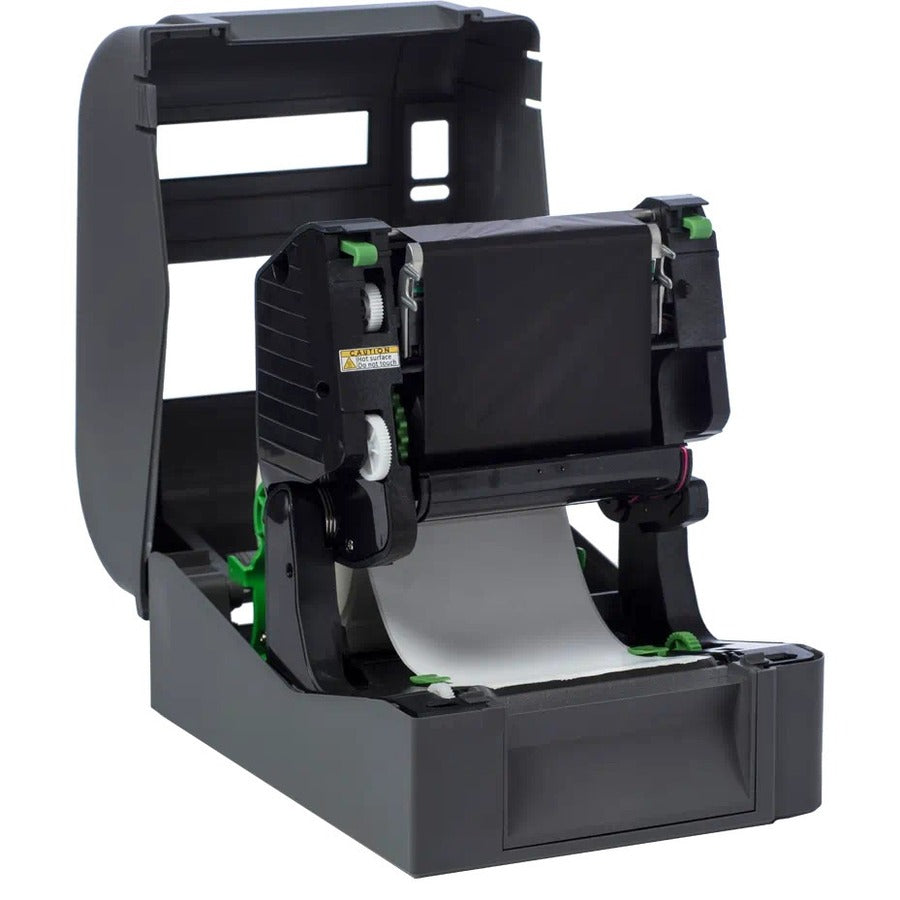

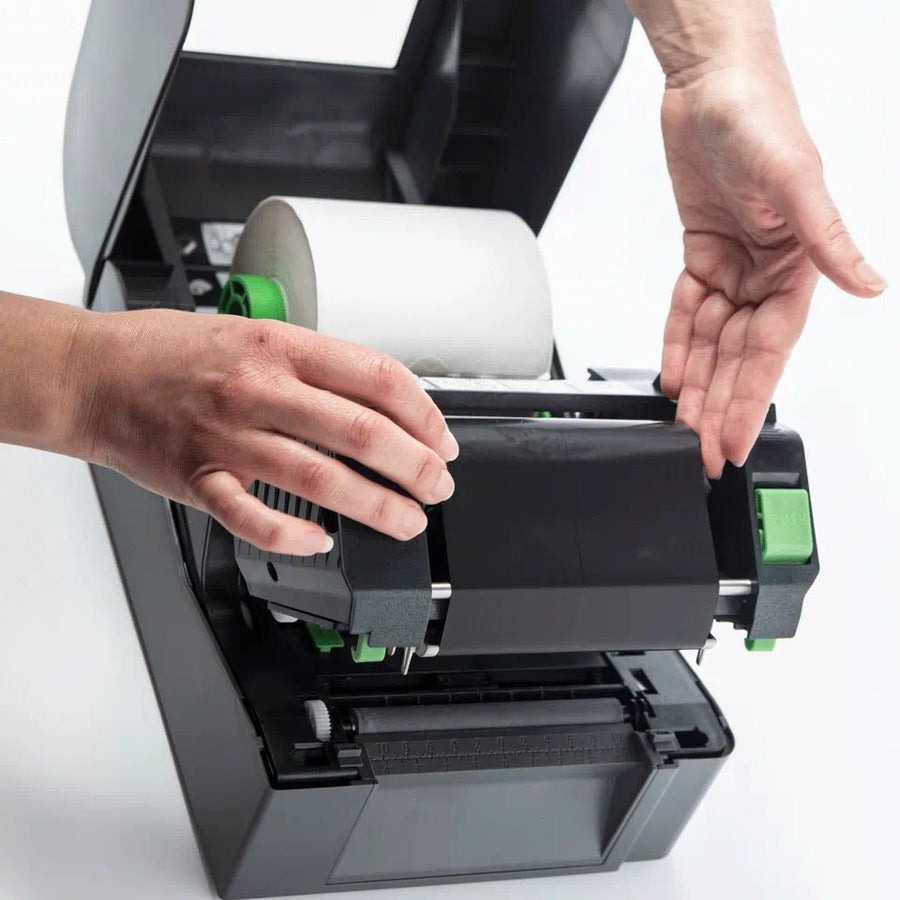

• Spindle-Less, Spring Loaded Media Guides with Adjustable Open-and-Lock Position True drop-in and easier media loading experience
• Compatible with 300m Ink Ribbon and 8" OD Media Roll with Optional External Media Roll Holder Use common media in mixed deployment of industrial tabletop and desktop printers & helps increase productivity and higher print job volume from a desktop printer
• Wide Range of Compatible Software Solutions Using Windows Printer Driver & ZPL/EPL/DPL Emulations Seamless integration with backwards compatibility with virtually any competitive desktop printer?
• Real Time Clock with Battery Backup No extra cost to use built in clock/calendar
• Thermal Transfer Printing Mechanism is Protected by an ABS Plastic Shell Innovative print engine modular design helps protect use tough environments

Product Type: Direct Thermal/Thermal Transfer Printer

Technical Information

Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 152.40 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 4.25"
Barcode Symbology Supported: PDF417,Data Matrix,Maxi Code,QR Code,AZTEC,Micro QR,Code 39,Code 93,Code 128,ITF,UPC-A/E,EAN-13,EAN-8,GS1 DataBar,MSI,Plessey,Industrial 2 of 5,Codabar (NW-7),POSTNET
Peel Facility: Yes
Application/Usage: Desktop

Memory

Standard Memory: 64 MB

Interfaces/Ports

USB Host: Yes
Serial Port: Yes
USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Cutter

Cutter: Yes

Media Types & Handling

Media Type: Label,Receipt,Wristband,Fanfold,Tag,Perforated Label,Continuous Roll,Die-cut Label
Media Sensor: Adjustable Media Sensor
Media Thickness: 7.5 mil
Maximum Roll Diameter: 5"
Maximum Label Width: 4.65" (118 mm)

Fonts & Emulation

Language Emulation: ZPL,EPL,DPL,FBPL-EZD,ZPL II,EPL2,CPCL

Software

Operating System Supported:

Windows 10 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit), Windows Vista (32/64bit), Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32/64bit), Mac OS X 10.10.x or later, Linux Red Hat and Debian

Power Description

Power Source: Power Adapter

Environmental Conditions

Operating Temperature: 32°F (0°C) - 104°F (40°C)
Operating Relative Humidity: 20% - 85%
Storage Temperature: -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity: 5% - 90%

Physical Characteristics

Height: 11.10" (282 mm)
Width: 8.11" (206 mm)
Depth: 7.01" (178 mm)
Weight (Approximate): 2 kg

Miscellaneous

Package Contents:

• TD-4420TN Printer
• USB Cable
• AC Adapter
• Power Cable
• Printed Guides
• Software (Brother Solutions Center)

Cables Included: USB,AC
Power Adapter Included: Yes
Platform Supported: PC,Mac
Energy Star: Yes

Warranty

Limited Warranty: 2 Year
