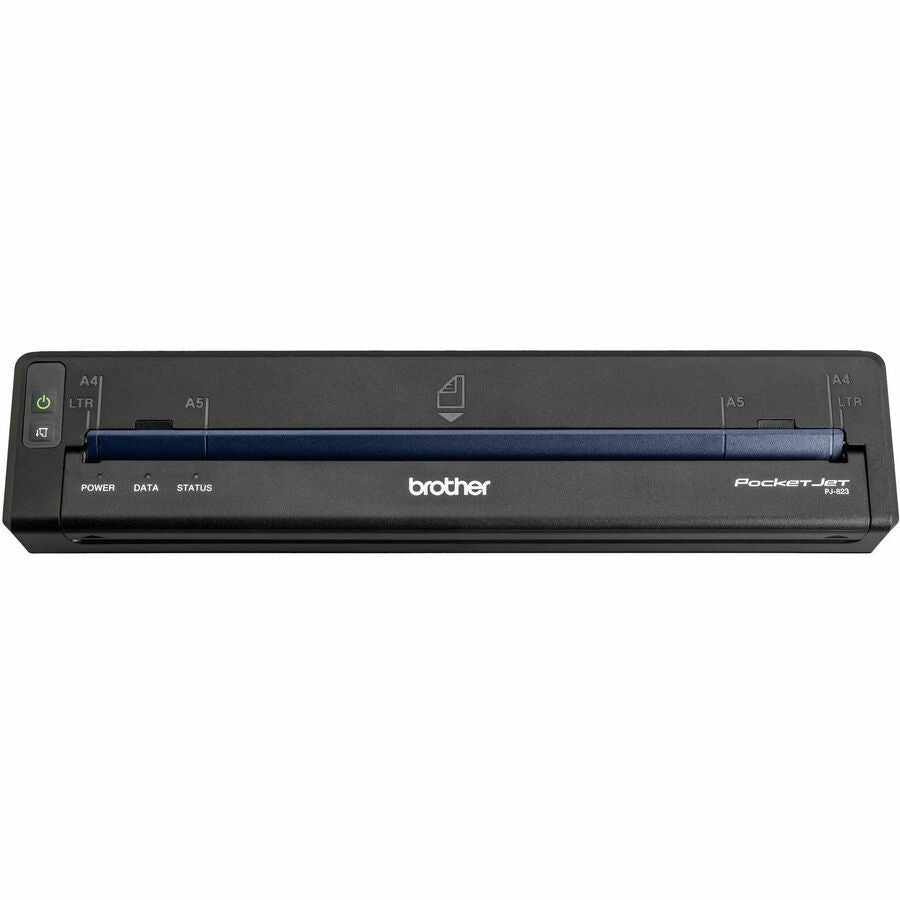

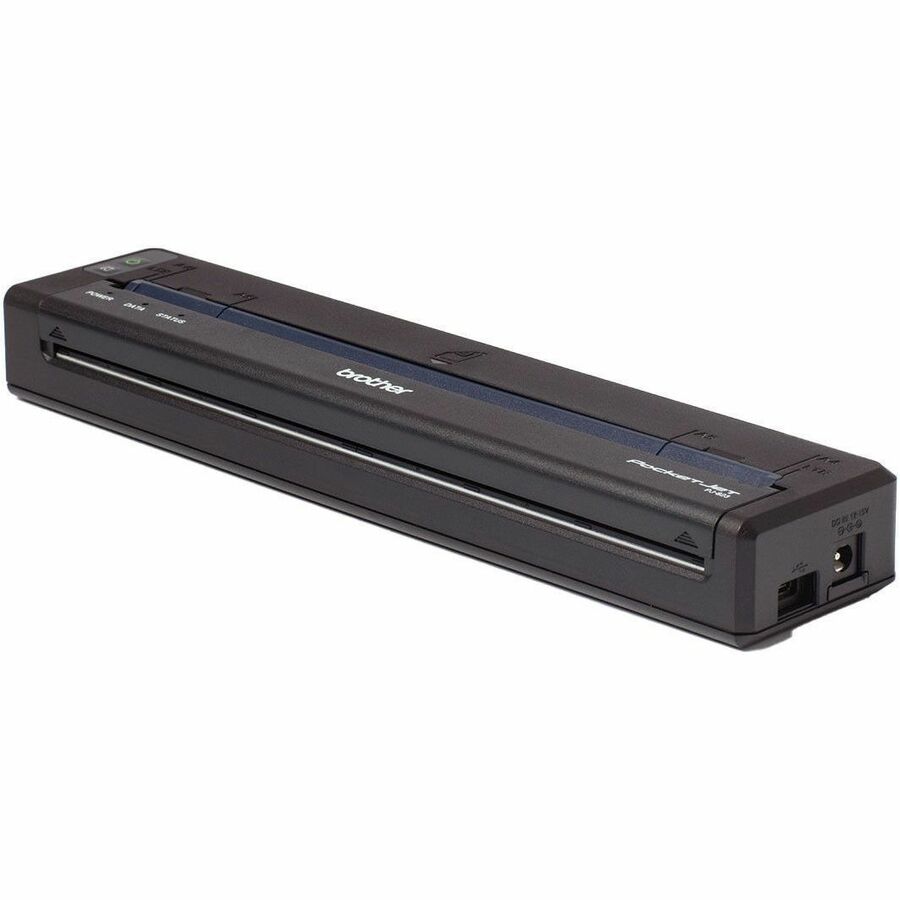

Brother PJ-823 Mobile Direct Thermal Printer - Monochrome - Portable - Label Print - USB - USB Host
Brother PJ-823 Mobile Direct Thermal Printer - Monochrome - Portable - Label Print - USB - USB Host
Couldn't load pickup availability
General Information
Manufacturer: Brother Industries, LtdManufacturer Part Number: PJ823VK
Manufacturer Website Address: http://www.brother.ca
Brand Name: Brother
Product Series: PJ-800
Product Model: PJ-823

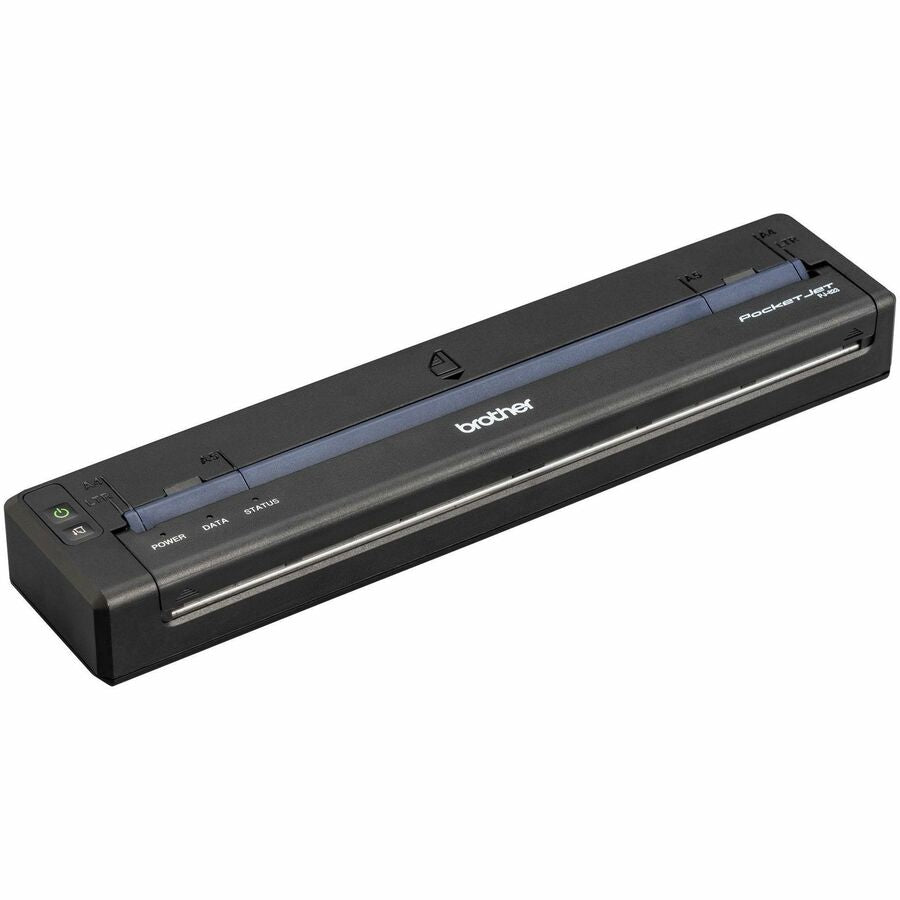

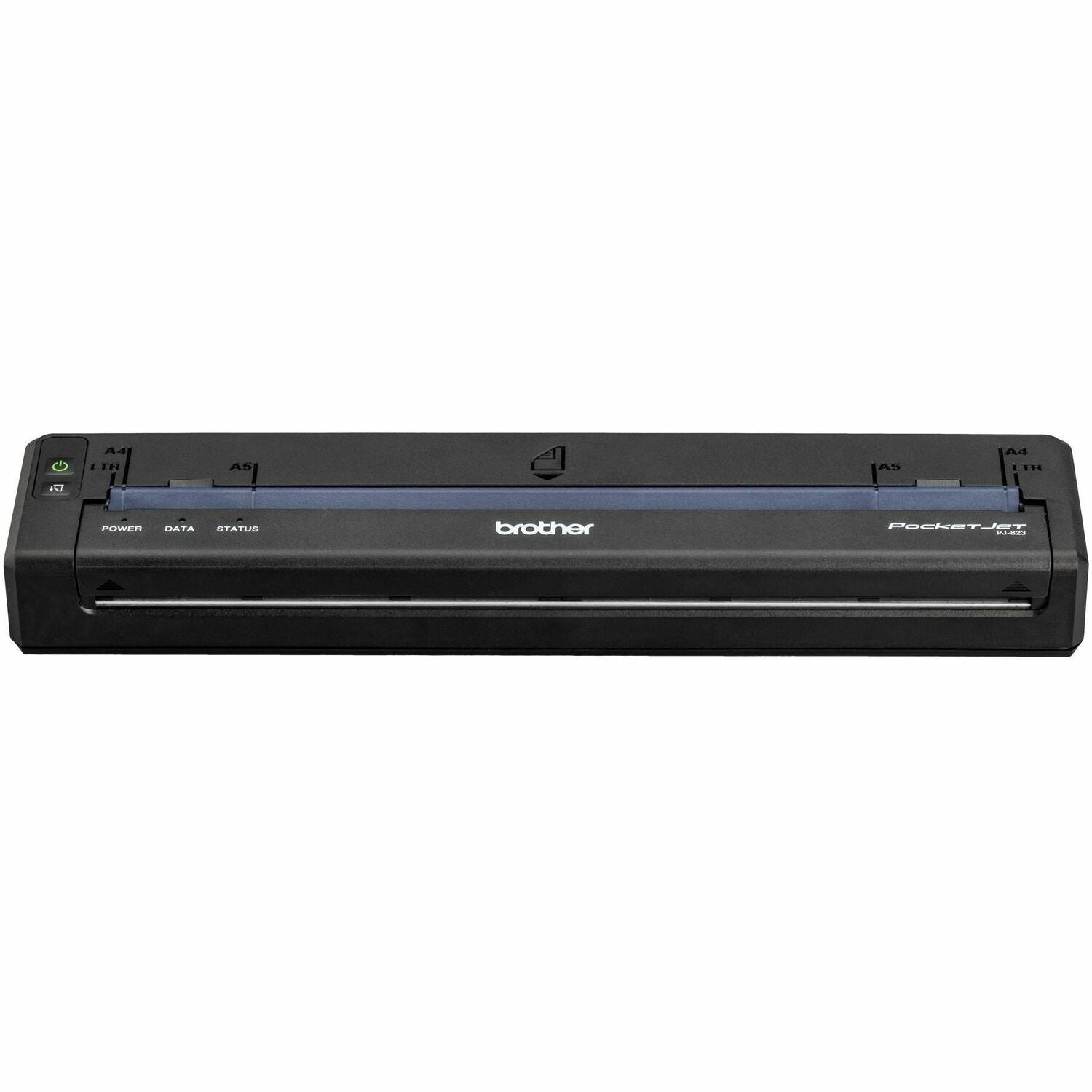

Product Name: PJ-823 - A4 Mobile Thermal Printer
Marketing Information:

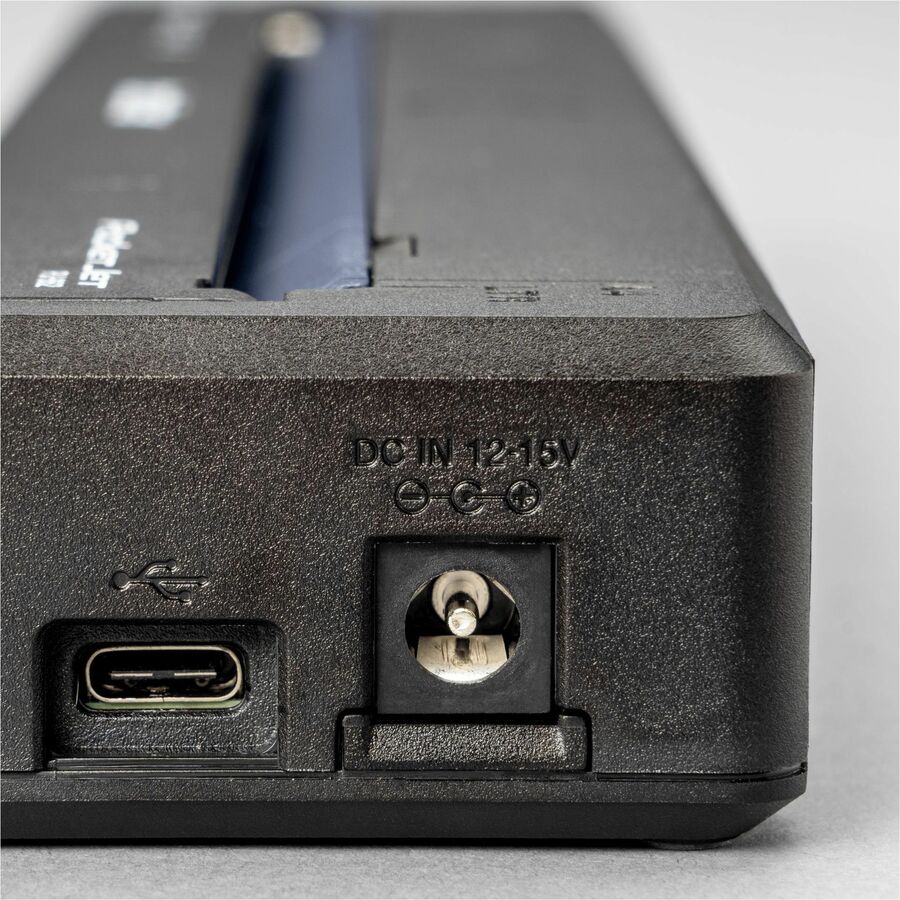

- USB Type-C connectivity for data transfer and charging
- 300dpi print resolution
- Up to 13.5ppm print speed
- Android, Windows, Mac and Linux support
- Optional high-capacity Li-ion battery for printing away from power sources

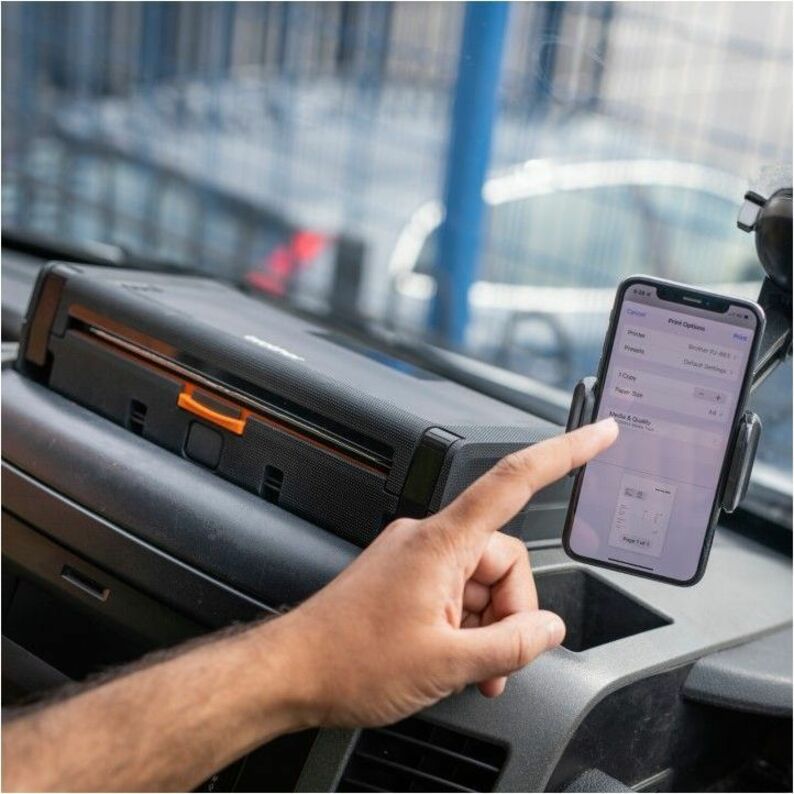

- Customise your print solution with vehicle mounting kit, chargers and protective cases
Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.
The PJ-823 with its USB connectivity offers a mobile A4 print solution compact enough to fit easily into a briefcase or computer bag, but that can also be permanently installed in vehicles.
Thermal print technology at 300x300dpi produces high-resolution, crisp text at a print speed of up to 13.5 pages per minute.
Compatible with a wide range of mobile and desktop operating systems, the PJ-823 can easily be integrated into your own apps and software using the various SDK's (Software Development Kits) available. Also supports a variety of printer command languages, including ZPL2 emulation.
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label PrintPrint Color Capability: Monochrome
Maximum Mono Print Speed: 7.6 lpm
Maximum Print Resolution (dpi): 300 x 300
Maximum Print Length: 11" (279.40 mm)
Maximum Print Width: 8"
Barcode Symbology Supported: Code 39,Code 128,ITF,UPC-A/E,EAN-8,EAN-13,UPC-EAN Extensions,GS1-128,UCC/EAN 128,GS1 DataBar,MSI,Industrial 2 of 5,Standard 2 of 5,POSTNET,2D,PDF-417,Micro PDF-417,Data Matrix,Maxi Code,QR Code,Micro QR,AZTEC,GS1 DataBar Composite
Application/Usage: Mobile
Features: Compact,Lightweight,Rugged
Mobile Device Printing: Yes
Interfaces/Ports
USB Host: YesUSB: Yes
Media Types & Handling
Media Type: Synthetic Media,Cut Sheet Paper,Continuous Roll,Perforated Paper,Fanfold,LabelMedia Size: A4,A5,Letter,Legal
Media Thickness: 6.3 mil
Maximum Label Width: 8.50" (215.90 mm)
Fonts & Emulation
Language Emulation: ESC/P,Raster,ZPL2Software
Operating System Supported: Windows - 8.1/10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022, Mac OSX - v10.15/11/12, Linux - Redhat, DebianEnvironmental Conditions
Operating Temperature: 122°F (50°C)Operating Relative Humidity: 20% - 80%
Storage Temperature: 140°F (60°C)
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Form Factor: PortableHeight: 1.18" (30 mm)
Width: 10.04" (255 mm)
Depth: 2.17" (55 mm)
Weight (Approximate): 480 g
Miscellaneous
Cables Included: USBPlatform Supported: Android,PC,Mac
