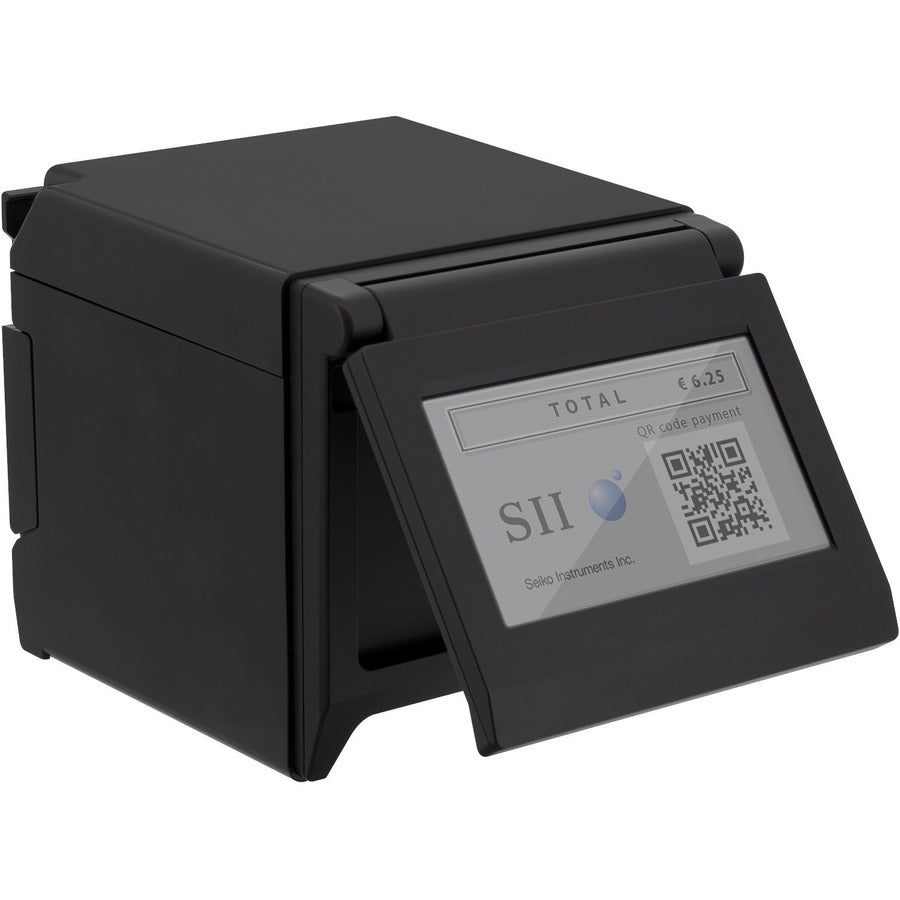

Seiko RP-F10 Desktop Direct Thermal Printer - Monochrome - Wall Mount - Receipt Print - USB - USB Host - Bluetooth - Near Field Communication (NFC) - US - With Cutter - Black

General Information

Manufacturer: Seiko Instruments USA, Inc
Manufacturer Part Number: RP-F10-K27J1-5005
Manufacturer Website Address: http://www.siiprinters.com
Brand Name: Seiko
Product Model: RP-F10
Product Name: RP-F10 Series & 4.3 inch Color TFT Display
Marketing Information:

Get ready for the next innovation at the Point-of-Sale

Our recently launched POS Printer RP-F10 series is the first of its kind in offering a dedicated 4.3 inch optional color TFT display. This innovative LCD screen can be mounted directly to the printer, stands alone and can even be wall-mounted. Simply connect via USB to the printer to show text, QR codes, graphics (jpg, png) or displaying the printer status. These features will help you to take customer communication to the next level when it comes to POS transactions.

Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 9.84 in/s (250 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Width: 2.83" (72 mm)
Barcode Symbology Supported: QR Code,UPC-A/E,EAN/JAN-8,EAN/JAN-13,ITF,Codabar,Code 39,Code 93,Code 128,PDF417,GS1 DataBar
Application/Usage: Desktop
Features: Compact,Cash Drawer Port

Interfaces/Ports

USB Host: Yes
USB: Yes

Network & Communication

Bluetooth: Yes
Near Field Communication (NFC): Yes

Display & Graphics

Display Screen: Yes
Screen Size: 4.3" (109.22 mm)
Display Screen Type: LCD

Cutter

Cutter: Yes
Cutting Method: Automatic
Cut Type: Full/Partial Cut
Cutter Life: 1500000 Cuts

Media Types & Handling

Media Type: Receipt
Maximum Roll Diameter: 3.3" (83 mm)
Maximum Label Width: 3.15" (80 mm)

Fonts & Emulation

Language Emulation: ESC/POS

Software

Operating System Supported: Windows® : Printer Driver, Virtual COM Driver, OPOS Driver, POS for Net Driver/SDK/Utility, Linux® : CUPS Filter (Driver)/ Communication Library (SDK), Android™ : SDK/Utility, iOS:SDK/Utility

Power Description

Power Source: Power Adapter
Input Voltage: 24 V DC

Environmental Conditions

Operating Temperature: 41°F (5°C) - 113°F (45°C)

Physical Characteristics

Form Factor: Wall Mount
Product Color: Black
Height: 5" (127 mm)
Width: 5" (127 mm)
Depth: 5" (127 mm)

Miscellaneous

Power Cable Localization: US
Optional Connectivity: Ethernet
Platform Supported: PC,Android,iOS
